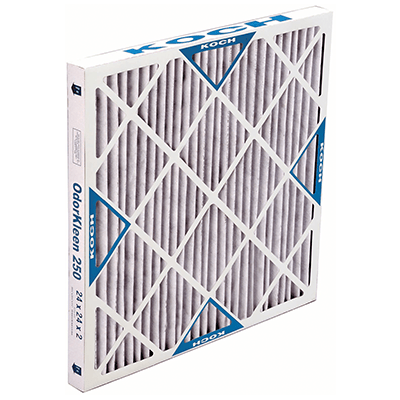

OdorKleen-250

Carbon and Gas Phase Filters

OdorKleen 250

  • New design for superior performance
  • MERV 8 particulate filtration efficiency
  • Carbon and particulate dual-filtration media
  • Low pressure drop
  • Virtually no carbon dusting
  • High odor removal with lightweight construction

Product Details

OdorKleen 250 is a combination gas-phase and particulate filtration solution designed to deliver superior performance in odor removal and particle capture.


The filter incorporates 250 gsm of activated carbon combined with a high-efficiency cotton-polyester particulate layer, providing balanced filtration performance with low resistance to airflow.


The gas-phase filtration layer utilizes Celbond Particulate Structure (CPS) technology, which suspends activated carbon uniformly throughout a three-dimensional fiber network. This design ensures minimal obstruction of the carbon surface approximately maximizing exposure of contaminants to the carbon for enhanced adsorption efficiency.


The integrated cotton-polyester media captures particulate contaminants effectively, resulting in a MERV 8 efficiency rating while maintaining a low pressure drop compared to traditional filtration products.


With improved design features, OdorKleen 250 offers enhanced odor removal, reduced weight, and minimal dusting, making it suitable for a wide range of environments.



Applications

  • Chemical Storage Rooms
  • Hospitals
  • Sports Arenas
  • Laboratories
  • Airports
  • Smoking Lounges and Bars

Spezifikation

EfficiencyMERV 8
Recommended Final Resistance1.2” w.g.
Media100% Synthetic Carbon Impregnated Media
Media SupportSelf-Supporting
Frame TypeBeverage Board
Max Operating Temperature180°F (93°C)
Filter Depth1”, 2”, 4”
|
|

PDF

Koch-OdorKleen-250
Download
