- Progressive density fiber matrix
- Prevents particle migration
- Unparalleled dust holding capacity
- Available in panel, blanket, and pad configurations
- Optional internal or external support grid
- Designed for critical surface finishing applications
Product Details

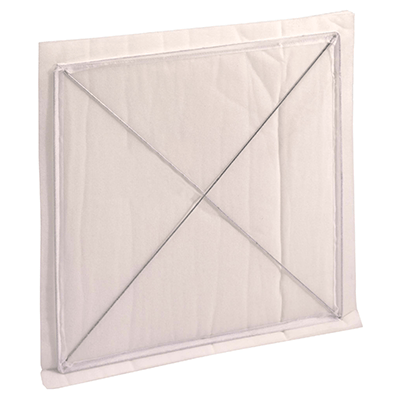

KR-1 Diffusion Panel
The KR-1 Diffusion Panel is designed to provide maximum protection against airborne dirt particles that can negatively impact finish quality in cross-draft and down-draft paint spray booths.
Features
The panel utilizes a progressive density fiber matrix to deliver exceptional performance in surface finishing operations. This design prevents particle migration and offers unparalleled dust holding capacity compared to competitive diffusion media.
The KR-1 is available in panel, blanket, and pad configurations, and can be supplied with either internal or external support grids depending on application requirements.
Applications
This product is widely used in industries requiring high-quality surface finishes, including:
- Aerospace
- Furniture Manufacturing
- Automotive Manufacturing
- Appliance Manufacturing
- Automotive Aftermarket
- Contract Coating Operations
Spezifikation
| Initial Resistance | .19” w.g. @ 100 fpm |
| Average Efficiency @ 10 microns | 95+% |
| Thickness | 0.90" |
| UL Classification | Class 2, Standard 900 |
| Dust Holding Capacity | 147.00 grams |
